12. Spool Holder

Overview

The spool holder consists of 4 Spool Holder Tube and 4 PP-SpoolHolderTubeMount-PCB with pre-machined holes and fixed by screws and t-nuts.

Note

Due to the design update, the spool holder rods are no longer included.

Assembly

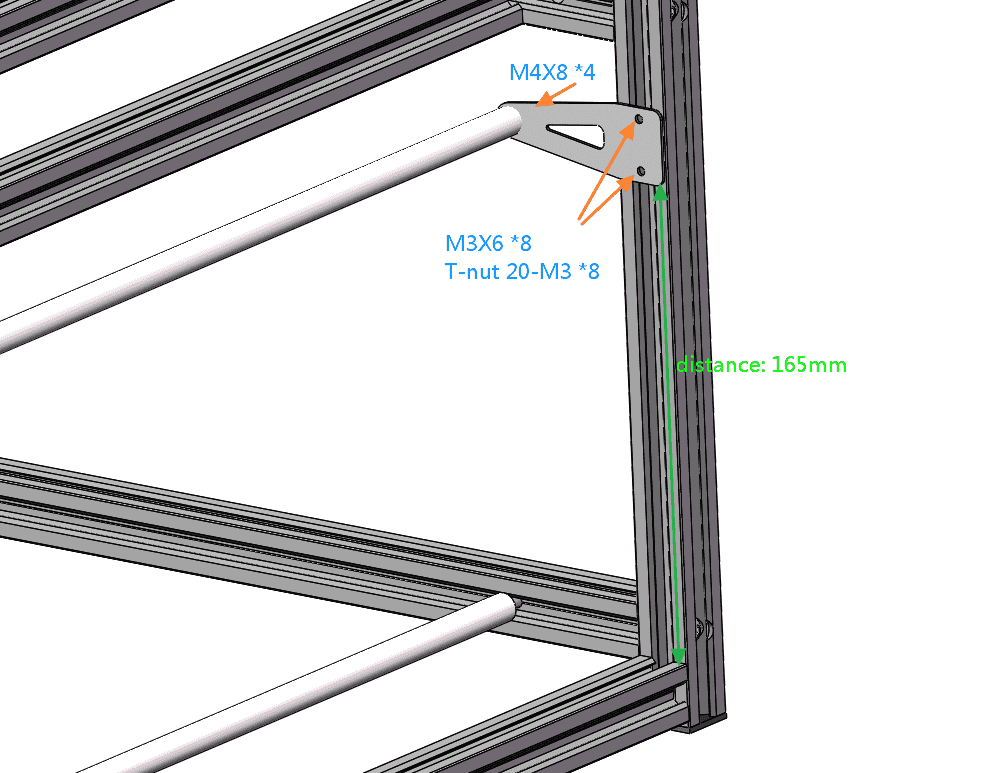

1. Bottom

Fix the front end first, not too tight, the nylon nut may fail. As long as the pipe does not turn freely. Then fix the back side, the screws should not be too tight.

2. Top
